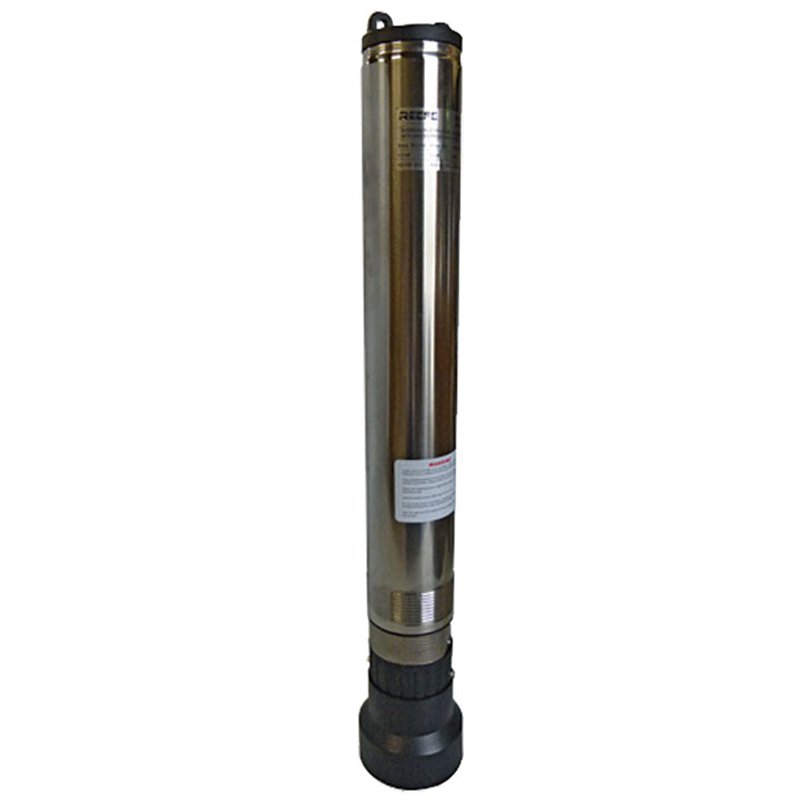

REEFE WPS036 MULTISTAGE SUBMERSIBLE PRESSURE PUMP ( With an integral pressure controller) (AWRWPS036)
With an integral pressure controller, the WPS submersible multistage pressure pumps offer many benefits over standard submersible pumps with separate pressure controllers, including quicker install time with less parts, and increased reliability.
Clean water transfer
Household supply
Rainwater tanks
Industrial cleaning
Commercial laundries
Rain to Mains backup systems
integrated pressure controller with 220kPa-cut-in
Integrated run-dry protection
Auto restart function*
Leak detection function
Integrated check valve
Compact design
Water-cooled motor
Thermal overload protection
Corrosion resistant
Base keeps the suction out of sludge build-up
Maximum water temperature 40°C
Certified to AS/NZS4020 for use with potable water
Electrical Safety Approval to AS/NZS60335.2.41
Grade 304 stainless steel outer casing
PPO impellers & diffusers
Stainless steel grade 304 motor shaft
Plastic pump base and discharge body
Double mechanical seal, silicon carbide and carbon/ceramic
Ingress Protection IPX8
Insulation class B
| AMPS | 3.5 | P1 | P2 | 0.8 | 0.45 |
|---|---|---|---|
| RATED FLOW | 40 L/min | RATED HEAD | 29m |
| MAX FLOW | 100 L/min | MAX HEAD | 36m |
| NO. OF IMPELLERS | 5 | NO. OF TAPS | 4 – 6 |
| CABLE LENGTH | 10m | OUTLET | 25mm |
| FLOAT | No | SIZE DIA x H (mm) | 125 x 870 |
